Circuit Library

qiskit.circuit.library

The circuit library is a collection of well-studied and valuable circuits, directives, and gates. We call them valuable for different reasons, for instance they can serve as building blocks for algorithms or they are circuits that we think are hard to simulate classically.

Each element can be plugged into a circuit using the QuantumCircuit.append() method and so the circuit library allows users to program at higher levels of abstraction. For example, to append a multi-controlled CNOT:

from qiskit.circuit.library import MCXGate
gate = MCXGate(4)

from qiskit import QuantumCircuit
circuit = QuantumCircuit(5)
circuit.append(gate, [0, 1, 4, 2, 3])
circuit.draw('mpl')

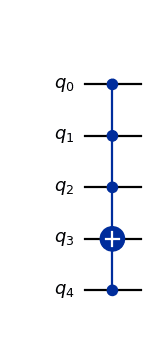

../_images/circuit_library-1.png

The library is organized in several sections. The function get_standard_gate_name_mapping() allows you to see the available standard gates and operations.

get_standard_gate_name_mapping

qiskit.circuit.library.get_standard_gate_name_mapping()

GitHub

Return a dictionary mapping the name of standard gates and instructions to an object for that name.

Examples

from qiskit.circuit.library import get_standard_gate_name_mapping

gate_name_map = get_standard_gate_name_mapping()
cx_object = gate_name_map["cx"]

print(cx_object)
print(type(cx_object))
Instruction(name='cx', num_qubits=2, num_clbits=0, params=[])
_SingletonCXGate

Standard gates

These operations are reversible unitary gates and they all subclass Gate. As a consequence, they all have the methods to_matrix(), power(), and control(), which we can generally only apply to unitary operations.

For example:

from qiskit.circuit.library import XGate
gate = XGate()
print(gate.to_matrix())             # X gate
print(gate.power(1/2).to_matrix())  # √X gate
print(gate.control(1).to_matrix())  # CX (controlled X) gate
[[0.+0.j 1.+0.j]
 [1.+0.j 0.+0.j]]
[[0.5+0.5j 0.5-0.5j]
 [0.5-0.5j 0.5+0.5j]]
[[1.+0.j 0.+0.j 0.+0.j 0.+0.j]
 [0.+0.j 0.+0.j 0.+0.j 1.+0.j]
 [0.+0.j 0.+0.j 1.+0.j 0.+0.j]
 [0.+0.j 1.+0.j 0.+0.j 0.+0.j]]
C3XGate(*args[, _force_mutable])The X gate controlled on 3 qubits.
C3SXGate(*args[, _force_mutable])The 3-qubit controlled sqrt-X gate.
C4XGate(*args[, _force_mutable])The 4-qubit controlled X gate.
CCXGate(*args[, _force_mutable])CCX gate, also known as Toffoli gate.
DCXGate(*args[, _force_mutable])Double-CNOT gate.
CHGate(*args[, _force_mutable])Controlled-Hadamard gate.
CPhaseGate(theta[, label, ctrl_state, ...])Controlled-Phase gate.
CRXGate(theta[, label, ctrl_state, ...])Controlled-RX gate.
CRYGate(theta[, label, ctrl_state, ...])Controlled-RY gate.
CRZGate(theta[, label, ctrl_state, ...])Controlled-RZ gate.
CSGate(*args[, _force_mutable])Controlled-S gate.
CSdgGate(*args[, _force_mutable])Controlled-S^dagger gate.
CSwapGate(*args[, _force_mutable])Controlled-SWAP gate, also known as the Fredkin gate.
CSXGate(*args[, _force_mutable])Controlled-√X gate.
CUGate(theta, phi, lam, gamma[, label, ...])Controlled-U gate (4-parameter two-qubit gate).
CU1Gate(theta[, label, ctrl_state, ...])Controlled-U1 gate.
CU3Gate(theta, phi, lam[, label, ...])Controlled-U3 gate (3-parameter two-qubit gate).
CXGate(*args[, _force_mutable])Controlled-X gate.
CYGate(*args[, _force_mutable])Controlled-Y gate.
CZGate(*args[, _force_mutable])Controlled-Z gate.
CCZGate(*args[, _force_mutable])CCZ gate.
ECRGate(*args[, _force_mutable])An echoed cross-resonance gate.
HGate(*args[, _force_mutable])Single-qubit Hadamard gate.
IGate(*args[, _force_mutable])Identity gate.
MSGate(num_qubits, theta[, label])The Mølmer–Sørensen gate.
PhaseGate(theta[, label, duration, unit])Single-qubit rotation about the Z axis.
RCCXGate(*args[, _force_mutable])The simplified Toffoli gate, also referred to as Margolus gate.
RC3XGate(*args[, _force_mutable])The simplified 3-controlled Toffoli gate.
RGate(theta, phi[, label, duration, unit])Rotation θ around the cos(φ)x + sin(φ)y axis.
RXGate(theta[, label, duration, unit])Single-qubit rotation about the X axis.
RXXGate(theta[, label, duration, unit])A parametric 2-qubit XXX \otimes X interaction (rotation about XX).
RYGate(theta[, label, duration, unit])Single-qubit rotation about the Y axis.
RYYGate(theta[, label, duration, unit])A parametric 2-qubit YYY \otimes Y interaction (rotation about YY).
RZGate(phi[, label, duration, unit])Single-qubit rotation about the Z axis.
RZZGate(theta[, label, duration, unit])A parametric 2-qubit ZZZ \otimes Z interaction (rotation about ZZ).
RZXGate(theta[, label, duration, unit])A parametric 2-qubit ZXZ \otimes X interaction (rotation about ZX).
XXMinusYYGate(theta[, beta, label, ...])XX-YY interaction gate.
XXPlusYYGate(theta[, beta, label, duration, ...])XX+YY interaction gate.
SGate(*args[, _force_mutable])Single qubit S gate (Z**0.5).
SdgGate(*args[, _force_mutable])Single qubit S-adjoint gate (~Z**0.5).
SwapGate(*args[, _force_mutable])The SWAP gate.
iSwapGate(*args[, _force_mutable])iSWAP gate.
SXGate(*args[, _force_mutable])The single-qubit Sqrt(X) gate (X\sqrt{X}).
SXdgGate(*args[, _force_mutable])The inverse single-qubit Sqrt(X) gate.
TGate(*args[, _force_mutable])Single qubit T gate (Z**0.25).
TdgGate(*args[, _force_mutable])Single qubit T-adjoint gate (~Z**0.25).
UGate(theta, phi, lam[, label, duration, unit])Generic single-qubit rotation gate with 3 Euler angles.
U1Gate(theta[, label, duration, unit])Single-qubit rotation about the Z axis.
U2Gate(phi, lam[, label, duration, unit])Single-qubit rotation about the X+Z axis.
U3Gate(theta, phi, lam[, label, duration, unit])Generic single-qubit rotation gate with 3 Euler angles.
XGate(*args[, _force_mutable])The single-qubit Pauli-X gate (σx\sigma_x).
YGate(*args[, _force_mutable])The single-qubit Pauli-Y gate (σy\sigma_y).
ZGate(*args[, _force_mutable])The single-qubit Pauli-Z gate (σz\sigma_z).
GlobalPhaseGate(phase[, label, duration, unit])The global phase gate (eiθe^{i\theta}).

Standard Directives

Directives are operations to the quantum stack that are meant to be interpreted by the backend or the transpiler. In general, the transpiler or backend might optionally ignore them if there is no implementation for them.


Standard Operations

Operations are non-reversible changes in the quantum state of the circuit.


Generalized Gates

These “gates” (many are QuantumCircuit subclasses) allow to set the amount of qubits involved at instantiation time.

from qiskit.circuit.library import DiagonalGate

diagonal = DiagonalGate([1, 1j])
print(diagonal.num_qubits)

diagonal = DiagonalGate([1, 1, 1, -1])
print(diagonal.num_qubits)
1
2
Diagonal(diag)Circuit implementing a diagonal transformation.
DiagonalGate(diag)A generic diagonal quantum gate.
MCMT(gate, num_ctrl_qubits, num_target_qubits)The multi-controlled multi-target gate, for an arbitrary singly controlled target gate.
MCMTVChain(gate, num_ctrl_qubits, ...)The MCMT implementation using the CCX V-chain.
Permutation(num_qubits[, pattern, seed])An n_qubit circuit that permutes qubits.
PermutationGate(pattern)A gate that permutes qubits.
GMS(num_qubits, theta)Global Mølmer–Sørensen gate.
GR(num_qubits, theta, phi)Global R gate.
GRX(num_qubits, theta)Global RX gate.
GRY(num_qubits, theta)Global RY gate.
GRZ(num_qubits, phi)Global RZ gate.
MCMTGate(gate, num_ctrl_qubits, ...[, ...])The multi-controlled multi-target gate, for an arbitrary singly controlled target gate.
MCPhaseGate(lam, num_ctrl_qubits[, label, ...])Multi-controlled-Phase gate.
MCXGate([num_ctrl_qubits, label, ...])The general, multi-controlled X gate.
MCXGrayCode([num_ctrl_qubits, label, ...])Implement the multi-controlled X gate using the Gray code.
MCXRecursive([num_ctrl_qubits, label, ...])Implement the multi-controlled X gate using recursion.
MCXVChain([num_ctrl_qubits, dirty_ancillas, ...])Implement the multi-controlled X gate using a V-chain of CX gates.
RVGate(v_x, v_y, v_z[, basis])Rotation around arbitrary rotation axis v\vec{v} where v2\|\vec{v}\|_2 is angle of rotation in radians.
PauliGate(label)A multi-qubit Pauli gate.
LinearFunction(linear[, validate_input])A linear reversible circuit on n qubits.
Isometry(isometry, num_ancillas_zero, ...[, ...])Decomposition of arbitrary isometries from mm to nn qubits.
UnitaryGate(data[, label, check_input, ...])Class quantum gates specified by a unitary matrix.
UCGate(gate_list[, up_to_diagonal, mux_simp])Uniformly controlled gate (also called multiplexed gate).
UCPauliRotGate(angle_list, rot_axis)Uniformly controlled Pauli rotations.
UCRXGate(angle_list)Uniformly controlled Pauli-X rotations.
UCRYGate(angle_list)Uniformly controlled Pauli-Y rotations.
UCRZGate(angle_list)Uniformly controlled Pauli-Z rotations.

Boolean Logic Circuits

These are QuantumCircuit subclasses that implement boolean logic operations, such as the logical or of a set of qubit states.

AND(num_variable_qubits[, flags, mcx_mode])A circuit implementing the logical AND operation on a number of qubits.
AndGate(num_variable_qubits[, flags])A gate representing the logical AND operation on a number of qubits.
OR(num_variable_qubits[, flags, mcx_mode])A circuit implementing the logical OR operation on a number of qubits.
OrGate(num_variable_qubits[, flags])A gate representing the logical OR operation on a number of qubits.
XOR(num_qubits[, amount, seed])An n_qubit circuit for bitwise xor-ing the input with some integer amount.
BitwiseXorGate(num_qubits, amount)An n-qubit gate for bitwise xor-ing the input with some integer amount.
random_bitwise_xor(num_qubits, seed)Create a random BitwiseXorGate.
InnerProduct(num_qubits)A 2n-qubit Boolean function that computes the inner product of two n-qubit vectors over F2F_2.
InnerProductGate(num_qubits)A 2n-qubit Boolean function that computes the inner product of two n-qubit vectors over F2F_2.

Basis Change Circuits

These circuits allow basis transformations of the qubit states. For example, in the case of the Quantum Fourier Transform (QFT), it transforms between the computational basis and the Fourier basis.

QFT([num_qubits, approximation_degree, ...])Quantum Fourier Transform Circuit.
QFTGate(num_qubits)Quantum Fourier Transform Gate.

Arithmetic Circuits

These QuantumCircuits perform classical arithmetic, such as addition or multiplication.

Amplitude Functions

LinearAmplitudeFunction(num_state_qubits, ...)A circuit implementing a (piecewise) linear function on qubit amplitudes.

Functional Pauli Rotations

FunctionalPauliRotations([num_state_qubits, ...])Base class for functional Pauli rotations.
LinearPauliRotations([num_state_qubits, ...])Linearly-controlled X, Y or Z rotation.
PolynomialPauliRotations([num_state_qubits, ...])A circuit implementing polynomial Pauli rotations.
PiecewiseLinearPauliRotations([...])Piecewise-linearly-controlled Pauli rotations.
PiecewisePolynomialPauliRotations([...])Piecewise-polynomially-controlled Pauli rotations.
PiecewiseChebyshev(f_x[, degree, ...])Piecewise Chebyshev approximation to an input function.

Adders

DraperQFTAdder(num_state_qubits[, kind, name])A circuit that uses QFT to perform in-place addition on two qubit registers.
CDKMRippleCarryAdder(num_state_qubits[, ...])A ripple-carry circuit to perform in-place addition on two qubit registers.
VBERippleCarryAdder(num_state_qubits[, ...])The VBE ripple carry adder [1].
WeightedAdder([num_state_qubits, weights, name])A circuit to compute the weighted sum of qubit registers.
ModularAdderGate(num_state_qubits[, label])Compute the sum modulo 2n2^n of two nn-sized qubit registers.
HalfAdderGate(num_state_qubits[, label])Compute the sum of two equally-sized qubit registers, including a carry-out bit.
FullAdderGate(num_state_qubits[, label])Compute the sum of two nn-sized qubit registers, including carry-in and -out bits.

Multipliers

HRSCumulativeMultiplier(num_state_qubits[, ...])A multiplication circuit to store product of two input registers out-of-place.
RGQFTMultiplier(num_state_qubits[, ...])A QFT multiplication circuit to store product of two input registers out-of-place.
MultiplierGate(num_state_qubits[, ...])Compute the product of two equally sized qubit registers into a new register.

Comparators

IntegerComparator([num_state_qubits, value, ...])Integer Comparator.

Functions on binary variables

QuadraticForm([num_result_qubits, ...])Implements a quadratic form on binary variables encoded in qubit registers.

Other arithmetic functions

ExactReciprocal(num_state_qubits, scaling[, ...])Exact reciprocal

Particular Quantum Circuits

The following gates and quantum circuits define specific quantum circuits of interest:

FourierChecking(f, g)Fourier checking circuit.
GraphState(adjacency_matrix)Circuit to prepare a graph state.
GraphStateGate(adjacency_matrix)A gate representing a graph state.
HiddenLinearFunction(adjacency_matrix)Circuit to solve the hidden linear function problem.
IQP(interactions)Instantaneous quantum polynomial (IQP) circuit.
QuantumVolume(num_qubits[, depth, seed, ...])A quantum volume model circuit.
PhaseEstimation(num_evaluation_qubits, unitary)Phase Estimation circuit.
GroverOperator(oracle[, state_preparation, ...])The Grover operator.
PhaseOracle(expression[, synthesizer, var_order])Phase Oracle.

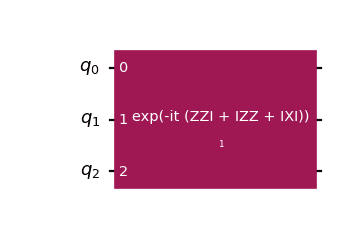

PauliEvolutionGate(operator[, time, label, ...])Time-evolution of an operator consisting of Paulis.
HamiltonianGate(data, time[, label])Class for representing evolution by a Hamiltonian operator as a gate.
UnitaryOverlap(unitary1, unitary2[, ...])Circuit that returns the overlap between two unitaries U2U1U_2^{\dag} U_1.

For circuits that have a well-defined structure it is preferrable to use the following functions to construct them:

fourier_checking(f, g)Fourier checking circuit.
hidden_linear_function(adjacency_matrix)Circuit to solve the hidden linear function problem.
iqp(interactions)Instantaneous quantum polynomial time (IQP) circuit.
random_iqp(num_qubits[, seed])A random instantaneous quantum polynomial time (IQP) circuit.
quantum_volume(num_qubits[, depth, seed])A quantum volume model circuit.
phase_estimation(num_evaluation_qubits, unitary)Phase Estimation circuit.
grover_operator(oracle[, state_preparation, ...])Construct the Grover operator.
unitary_overlap(unitary1, unitary2[, ...])Circuit that returns the overlap between two unitaries U2U1U_2^{\dag} U_1.

N-local circuits

The following functions return a parameterized QuantumCircuit to use as ansatz in a broad set of variational quantum algorithms:

n_local(num_qubits, rotation_blocks, ...[, ...])Construct an n-local variational circuit.

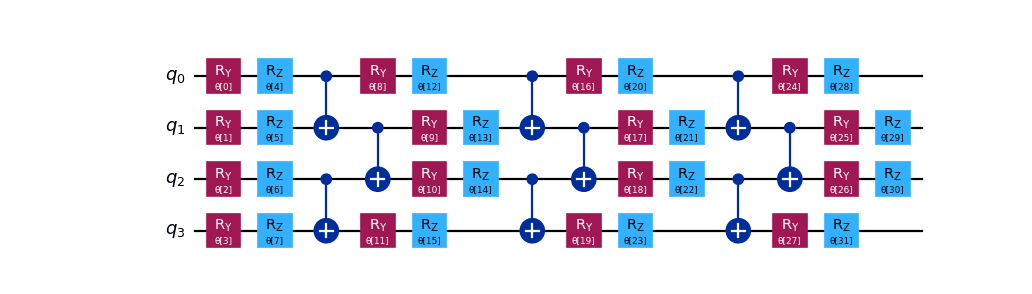

efficient_su2(num_qubits[, su2_gates, ...])The hardware-efficient SU(2)SU(2) 2-local circuit.

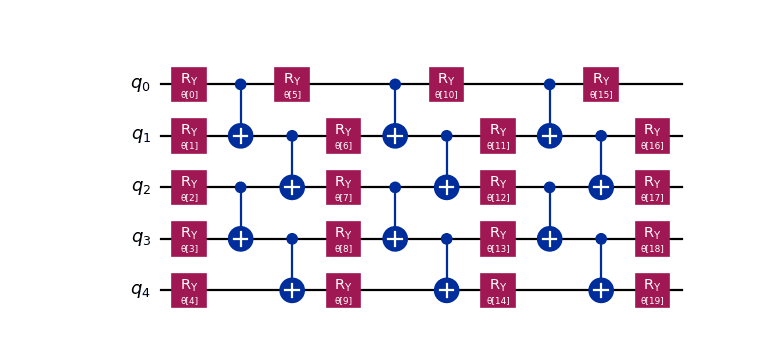

real_amplitudes(num_qubits[, entanglement, ...])Construct a real-amplitudes 2-local circuit.
pauli_two_design(num_qubits[, reps, seed, ...])Construct a Pauli 2-design ansatz.
excitation_preserving(num_qubits[, mode, ...])The heuristic excitation-preserving wave function ansatz.
qaoa_ansatz(cost_operator[, reps, ...])A generalized QAOA quantum circuit with a support of custom initial states and mixers.
hamiltonian_variational_ansatz(hamiltonian)Construct a Hamiltonian variational ansatz.
evolved_operator_ansatz(operators[, reps, ...])Construct an ansatz out of operator evolutions.

These BlueprintCircuit subclasses are used as parameterized models (a.k.a. ansatzes or variational forms) in variational algorithms. They are heavily used in near-term algorithms in e.g. Chemistry, Physics or Optimization.

NLocal([num_qubits, rotation_blocks, ...])The n-local circuit class.
TwoLocal([num_qubits, rotation_blocks, ...])The two-local circuit.
PauliTwoDesign([num_qubits, reps, seed, ...])The Pauli Two-Design ansatz.
RealAmplitudes([num_qubits, entanglement, ...])The real-amplitudes 2-local circuit.
EfficientSU2([num_qubits, su2_gates, ...])The hardware efficient SU(2) 2-local circuit.
EvolvedOperatorAnsatz([operators, reps, ...])The evolved operator ansatz.
ExcitationPreserving([num_qubits, mode, ...])The heuristic excitation-preserving wave function ansatz.
QAOAAnsatz([cost_operator, reps, ...])A generalized QAOA quantum circuit with a support of custom initial states and mixers.

Data encoding circuits

The following functions return a parameterized QuantumCircuit to use as data encoding circuits in a series of variational quantum algorithms:

pauli_feature_map(feature_dimension[, reps, ...])The Pauli expansion circuit.
z_feature_map(feature_dimension[, reps, ...])The first order Pauli Z-evolution circuit.

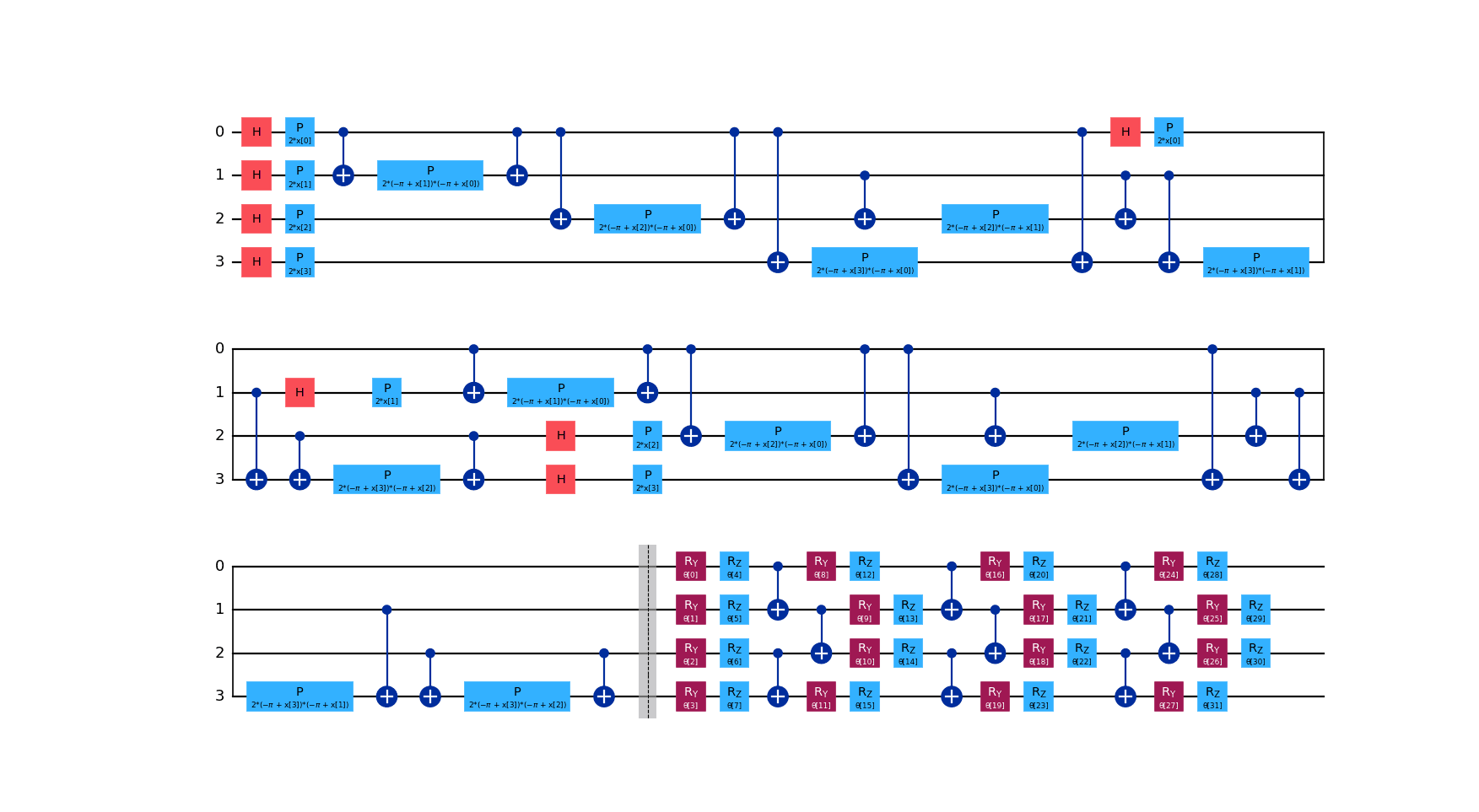

zz_feature_map(feature_dimension[, reps, ...])Second-order Pauli-Z evolution circuit.

These BlueprintCircuit encode classical data in quantum states and are used as feature maps for classification.

PauliFeatureMap([feature_dimension, reps, ...])The Pauli Expansion circuit.
ZFeatureMap(feature_dimension[, reps, ...])The first order Pauli Z-evolution circuit.
ZZFeatureMap(feature_dimension[, reps, ...])Second-order Pauli-Z evolution circuit.

Data preparation circuits

The following operations are used for state preparation:

StatePreparation(params[, num_qubits, ...])Complex amplitude state preparation.
Initialize(params[, num_qubits, normalize])Complex amplitude initialization.

Template circuits

Templates are functions that return circuits that compute the identity. They are used at circuit optimization where matching part of the template allows the compiler to replace the match with the inverse of the remainder from the template.

In this example, the identity constant in a template is checked:

from qiskit.circuit.library.templates import template_nct_4b_1
from qiskit.quantum_info import Operator
import numpy as np

template = template_nct_4b_1()

identity = np.identity(2 ** len(template.qubits), dtype=complex)
data = Operator(template).data
np.allclose(data, identity)  # True, template_nct_4b_1 is the identity

NCT (Not-CNOT-Toffoli) template circuits

Template circuits for XGate, CXGate, and CCXGate (Toffoli) gates.

Reference: Maslov, D. and Dueck, G. W. and Miller, D. M., Techniques for the synthesis of reversible Toffoli networks, 2007 http://dx.doi.org/10.1145/1278349.1278355

template_nct_2a_1

qiskit.circuit.library.templates.nct.template_nct_2a_1()

GitHub

Template 2a_1:

     ┌───┐┌───┐
q_0: ┤ X ├┤ X ├
     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_2a_2

qiskit.circuit.library.templates.nct.template_nct_2a_2()

GitHub

Template 2a_2:

q_0: ──■────■──
     ┌─┴─┐┌─┴─┐
q_1: ┤ X ├┤ X ├
     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_2a_3

qiskit.circuit.library.templates.nct.template_nct_2a_3()

GitHub

Template 2a_3:

q_0: ──■────■──
       │    │
q_1: ──■────■──
     ┌─┴─┐┌─┴─┐
q_2: ┤ X ├┤ X ├
     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_4a_1

qiskit.circuit.library.templates.nct.template_nct_4a_1()

GitHub

Template 4a_1:

q_0: ───────■─────────■──
            │         │
q_1: ──■────┼────■────┼──
       │    │    │    │
q_2: ──■────■────■────■──
       │  ┌─┴─┐  │  ┌─┴─┐
q_3: ──┼──┤ X ├──┼──┤ X ├
     ┌─┴─┐└───┘┌─┴─┐└───┘
q_4: ┤ X ├─────┤ X ├─────
     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_4a_2

qiskit.circuit.library.templates.nct.template_nct_4a_2()

GitHub

Template 4a_2:

q_0: ──■─────────■───────
       │         │
q_1: ──■────■────■────■──
       │  ┌─┴─┐  │  ┌─┴─┐
q_2: ──┼──┤ X ├──┼──┤ X ├
     ┌─┴─┐└───┘┌─┴─┐└───┘
q_3: ┤ X ├─────┤ X ├─────
     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_4a_3

qiskit.circuit.library.templates.nct.template_nct_4a_3()

GitHub

Template 4a_3:

q_0: ──■────■────■────■──
       │  ┌─┴─┐  │  ┌─┴─┐
q_1: ──┼──┤ X ├──┼──┤ X ├
     ┌─┴─┐└───┘┌─┴─┐└───┘
q_2: ┤ X ├─────┤ X ├─────
     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_4b_1

qiskit.circuit.library.templates.nct.template_nct_4b_1()

GitHub

Template 4b_1:

q_0: ───────■─────────■──
            │         │
q_1: ──■────┼────■────┼──
       │    │    │    │
q_2: ──■────■────■────■──
     ┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐
q_3: ┤ X ├┤ X ├┤ X ├┤ X ├
     └───┘└───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_4b_2

qiskit.circuit.library.templates.nct.template_nct_4b_2()

GitHub

Template 4b_2:

q_0: ──■─────────■───────
       │         │
q_1: ──■────■────■────■──
     ┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐
q_2: ┤ X ├┤ X ├┤ X ├┤ X ├
     └───┘└───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_5a_1

qiskit.circuit.library.templates.nct.template_nct_5a_1()

GitHub

Template 5a_1:

q_0: ──■────■────■────■────■──
       │  ┌─┴─┐  │  ┌─┴─┐  │
q_1: ──■──┤ X ├──■──┤ X ├──┼──
     ┌─┴─┐└───┘┌─┴─┐└───┘┌─┴─┐
q_2: ┤ X ├─────┤ X ├─────┤ X ├
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_5a_2

qiskit.circuit.library.templates.nct.template_nct_5a_2()

GitHub

Template 5a_2:

q_0: ──■─────────■─────────■──
       │  ┌───┐  │  ┌───┐  │
q_1: ──■──┤ X ├──■──┤ X ├──┼──
     ┌─┴─┐└───┘┌─┴─┐└───┘┌─┴─┐
q_2: ┤ X ├─────┤ X ├─────┤ X ├
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_5a_3

qiskit.circuit.library.templates.nct.template_nct_5a_3()

GitHub

Template 5a_3:

q_0: ───────■─────────■────■──
          ┌─┴─┐     ┌─┴─┐  │
q_1: ──■──┤ X ├──■──┤ X ├──┼──
     ┌─┴─┐└───┘┌─┴─┐└───┘┌─┴─┐
q_2: ┤ X ├─────┤ X ├─────┤ X ├
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_5a_4

qiskit.circuit.library.templates.nct.template_nct_5a_4()

GitHub

Template 5a_4:

          ┌───┐     ┌───┐
q_0: ──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└───┘┌─┴─┐├───┤
q_1: ┤ X ├─────┤ X ├┤ X ├
     └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6a_1

qiskit.circuit.library.templates.nct.template_nct_6a_1()

GitHub

Template 6a_1:

          ┌───┐     ┌───┐     ┌───┐
q_0: ──■──┤ X ├──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘
q_1: ┤ X ├──■──┤ X ├──■──┤ X ├──■──
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6a_2

qiskit.circuit.library.templates.nct.template_nct_6a_2()

GitHub

Template 6a_2:

q_0: ──■────■────■────■────■────■──
       │  ┌─┴─┐  │  ┌─┴─┐  │  ┌─┴─┐
q_1: ──■──┤ X ├──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘
q_2: ┤ X ├──■──┤ X ├──■──┤ X ├──■──
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6a_3

qiskit.circuit.library.templates.nct.template_nct_6a_3()

GitHub

Template 6a_3:

q_0: ───────■─────────■────■────■──
          ┌─┴─┐     ┌─┴─┐  │  ┌─┴─┐
q_1: ──■──┤ X ├──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘
q_2: ┤ X ├──■──┤ X ├──■──┤ X ├──■──
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6a_4

qiskit.circuit.library.templates.nct.template_nct_6a_4()

GitHub

Template 6a_4:

q_0: ───────■──────────────■───────
          ┌─┴─┐     ┌───┐  │  ┌───┐
q_1: ──■──┤ X ├──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘
q_2: ┤ X ├──■──┤ X ├──■──┤ X ├──■──
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6b_1

qiskit.circuit.library.templates.nct.template_nct_6b_1()

GitHub

Template 6b_1:

q_0: ──■─────────■────■─────────■──
       │       ┌─┴─┐  │       ┌─┴─┐
q_1: ──■────■──┤ X ├──■────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6b_2

qiskit.circuit.library.templates.nct.template_nct_6b_2()

GitHub

Template 6b_2:

q_0: ───────■────■─────────■────■──
            │  ┌─┴─┐       │  ┌─┴─┐
q_1: ──■────■──┤ X ├──■────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_6c_1

qiskit.circuit.library.templates.nct.template_nct_6c_1()

GitHub

Template 6c_1:

q_0: ──■─────────■─────────■────■──
       │  ┌───┐  │  ┌───┐  │  ┌─┴─┐
q_1: ──■──┤ X ├──■──┤ X ├──■──┤ X ├
     ┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐└─┬─┘
q_2: ┤ X ├──■──┤ X ├──■──┤ X ├──■──
     └───┘     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_7a_1

qiskit.circuit.library.templates.nct.template_nct_7a_1()

GitHub

Template 7a_1:

     ┌───┐                    ┌───┐
q_0: ┤ X ├──■─────────■────■──┤ X ├──■──
     └─┬─┘┌─┴─┐       │  ┌─┴─┐└─┬─┘  │
q_1: ──■──┤ X ├──■────■──┤ X ├──■────■──
          └───┘┌─┴─┐┌─┴─┐└───┘     ┌─┴─┐
q_2: ──────────┤ X ├┤ X ├──────────┤ X ├
               └───┘└───┘          └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_7b_1

qiskit.circuit.library.templates.nct.template_nct_7b_1()

GitHub

Template 7b_1:

     ┌───┐                    ┌───┐
q_0: ┤ X ├──■─────────■────■──┤ X ├──■──
     └───┘┌─┴─┐       │  ┌─┴─┐└───┘  │
q_1: ─────┤ X ├──■────■──┤ X ├───────■──
          └───┘┌─┴─┐┌─┴─┐└───┘     ┌─┴─┐
q_2: ──────────┤ X ├┤ X ├──────────┤ X ├
               └───┘└───┘          └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_7c_1

qiskit.circuit.library.templates.nct.template_nct_7c_1()

GitHub

Template 7c_1:

     ┌───┐                    ┌───┐
q_0: ┤ X ├──■─────────■────■──┤ X ├──■──
     └───┘┌─┴─┐       │  ┌─┴─┐└───┘  │
q_1: ─────┤ X ├──■────■──┤ X ├───────■──
          └─┬─┘┌─┴─┐┌─┴─┐└─┬─┘     ┌─┴─┐
q_2: ───────■──┤ X ├┤ X ├──■───────┤ X ├
               └───┘└───┘          └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_7d_1

qiskit.circuit.library.templates.nct.template_nct_7d_1()

GitHub

Template 7d_1:

     ┌───┐                    ┌───┐
q_0: ┤ X ├──■─────────■────■──┤ X ├──■──
     └─┬─┘┌─┴─┐       │  ┌─┴─┐└─┬─┘  │
q_1: ──■──┤ X ├──■────■──┤ X ├──■────■──
          └─┬─┘┌─┴─┐┌─┴─┐└─┬─┘     ┌─┴─┐
q_2: ───────■──┤ X ├┤ X ├──■───────┤ X ├
               └───┘└───┘          └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_7e_1

qiskit.circuit.library.templates.nct.template_nct_7e_1()

GitHub

Template 7e_1:

     ┌───┐                    ┌───┐
q_0: ┤ X ├──■─────────■────■──┤ X ├──■──
     └───┘┌─┴─┐       │  ┌─┴─┐└───┘  │
q_1: ─────┤ X ├───────┼──┤ X ├───────┼──
          └─┬─┘┌───┐┌─┴─┐└─┬─┘     ┌─┴─┐
q_2: ───────■──┤ X ├┤ X ├──■───────┤ X ├
               └───┘└───┘          └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9a_1

qiskit.circuit.library.templates.nct.template_nct_9a_1()

GitHub

Template 9a_1:

     ┌───┐     ┌───┐          ┌───┐
q_0: ┤ X ├──■──┤ X ├──■────■──┤ X ├──■──
     └─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐
q_1: ──■──┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├
          └─┬─┘  │  ├───┤└─┬─┘┌───┐└─┬─┘
q_2: ───────■────■──┤ X ├──■──┤ X ├──■──
                    └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_1

qiskit.circuit.library.templates.nct.template_nct_9c_1()

GitHub

Template 9c_1:

     ┌───┐     ┌───┐┌───┐     ┌───┐          ┌───┐
q_0: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_1: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_2

qiskit.circuit.library.templates.nct.template_nct_9c_2()

GitHub

Template 9c_2:

q_0: ───────■────■──────────────■────■─────────■──
     ┌───┐  │  ┌─┴─┐┌───┐     ┌─┴─┐  │       ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_3

qiskit.circuit.library.templates.nct.template_nct_9c_3()

GitHub

Template 9c_3:

q_0: ───────■────────────────────────■────────────
     ┌───┐  │  ┌───┐┌───┐     ┌───┐  │       ┌───┐
q_1: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_4

qiskit.circuit.library.templates.nct.template_nct_9c_4()

GitHub

Template 9c_4:

q_0: ──■────■─────────■──────────────■────────────
     ┌─┴─┐  │  ┌───┐┌─┴─┐     ┌───┐  │       ┌───┐
q_1: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_5

qiskit.circuit.library.templates.nct.template_nct_9c_5()

GitHub

Template 9c_5:

q_0: ────────────■─────────■──────────────■───────
     ┌───┐     ┌─┴─┐┌───┐  │  ┌───┐       │  ┌───┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_6

qiskit.circuit.library.templates.nct.template_nct_9c_6()

GitHub

Template 9c_6:

q_0: ───────■────■─────────■─────────■────■───────
     ┌───┐  │  ┌─┴─┐┌───┐  │  ┌───┐  │    │  ┌───┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_7

qiskit.circuit.library.templates.nct.template_nct_9c_7()

GitHub

Template 9c_7:

q_0: ──■────■────■────■────■─────────■────■───────
     ┌─┴─┐  │  ┌─┴─┐┌─┴─┐  │  ┌───┐  │    │  ┌───┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_8

qiskit.circuit.library.templates.nct.template_nct_9c_8()

GitHub

Template 9c_8:

q_0: ──■─────────■────■─────────■──────────────■──
     ┌─┴─┐     ┌─┴─┐┌─┴─┐     ┌─┴─┐          ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_9

qiskit.circuit.library.templates.nct.template_nct_9c_9()

GitHub

Template 9c_9:

q_0: ──■────■────■────■─────────■────■─────────■──
     ┌─┴─┐  │  ┌─┴─┐┌─┴─┐     ┌─┴─┐  │       ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├─────┤ X ├──■───────┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌───┐└─┬─┘┌─┴─┐┌───┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_10

qiskit.circuit.library.templates.nct.template_nct_9c_10()

GitHub

Template 9c_10:

q_0: ──■─────────■────■────■────■─────────■────■──
     ┌─┴─┐     ┌─┴─┐┌─┴─┐  │  ┌─┴─┐       │  ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_11

qiskit.circuit.library.templates.nct.template_nct_9c_11()

GitHub

Template 9c_11:

q_0: ───────■────■─────────■────■────■────■────■──
     ┌───┐  │  ┌─┴─┐┌───┐  │  ┌─┴─┐  │    │  ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9c_12

qiskit.circuit.library.templates.nct.template_nct_9c_12()

GitHub

Template 9c_12:

q_0: ──■────■────■────■────■────■────■────■────■──
     ┌─┴─┐  │  ┌─┴─┐┌─┴─┐  │  ┌─┴─┐  │    │  ┌─┴─┐
q_1: ┤ X ├──■──┤ X ├┤ X ├──┼──┤ X ├──■────┼──┤ X ├
     └─┬─┘┌─┴─┐└───┘└─┬─┘┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ──■──┤ X ├───────■──┤ X ├──■──┤ X ├┤ X ├──■──
          └───┘          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_1

qiskit.circuit.library.templates.nct.template_nct_9d_1()

GitHub

Template 9d_1:

               ┌───┐          ┌───┐          ┌───┐
q_0: ──■───────┤ X ├───────■──┤ X ├───────■──┤ X ├
     ┌─┴─┐┌───┐└─┬─┘┌───┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘
q_1: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_2

qiskit.circuit.library.templates.nct.template_nct_9d_2()

GitHub

Template 9d_2:

q_0: ──■────■────■──────────────■──────────────■──
       │    │  ┌─┴─┐          ┌─┴─┐          ┌─┴─┐
q_1: ──■────┼──┤ X ├───────■──┤ X ├───────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_3

qiskit.circuit.library.templates.nct.template_nct_9d_3()

GitHub

Template 9d_3:

q_0: ──■────■───────────────────■─────────────────
       │    │  ┌───┐          ┌─┴─┐          ┌───┐
q_1: ──■────┼──┤ X ├───────■──┤ X ├───────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_4

qiskit.circuit.library.templates.nct.template_nct_9d_4()

GitHub

Template 9d_4:

q_0: ───────■─────────■──────────────■────────────
            │  ┌───┐  │       ┌───┐  │       ┌───┐
q_1: ──■────┼──┤ X ├──┼────■──┤ X ├──┼────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_5

qiskit.circuit.library.templates.nct.template_nct_9d_5()

GitHub

Template 9d_5:

q_0: ──■────■─────────■─────────■────■────────────
       │    │  ┌───┐  │       ┌─┴─┐  │       ┌───┐
q_1: ──■────┼──┤ X ├──┼────■──┤ X ├──┼────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_6

qiskit.circuit.library.templates.nct.template_nct_9d_6()

GitHub

Template 9d_6:

q_0: ──■────■──────────────■────■─────────■───────
       │    │  ┌───┐       │  ┌─┴─┐       │  ┌───┐
q_1: ──■────┼──┤ X ├───────■──┤ X ├───────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_7

qiskit.circuit.library.templates.nct.template_nct_9d_7()

GitHub

Template 9d_7:

q_0: ──■────■─────────■────■────■────■────■───────
       │    │  ┌───┐  │    │  ┌─┴─┐  │    │  ┌───┐
q_1: ──■────┼──┤ X ├──┼────■──┤ X ├──┼────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_8

qiskit.circuit.library.templates.nct.template_nct_9d_8()

GitHub

Template 9d_8:

q_0: ──■────■────■────■─────────■────■─────────■──
       │    │  ┌─┴─┐  │       ┌─┴─┐  │       ┌─┴─┐
q_1: ──■────┼──┤ X ├──┼────■──┤ X ├──┼────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_9

qiskit.circuit.library.templates.nct.template_nct_9d_9()

GitHub

Template 9d_9:

q_0: ──■────■────■─────────■────■─────────■────■──
       │    │  ┌─┴─┐       │  ┌─┴─┐       │  ┌─┴─┐
q_1: ──■────┼──┤ X ├───────■──┤ X ├───────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘┌───┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

template_nct_9d_10

qiskit.circuit.library.templates.nct.template_nct_9d_10()

GitHub

Template 9d_10:

q_0: ──■────■────■────■────■────■────■────■────■──
       │    │  ┌─┴─┐  │    │  ┌─┴─┐  │    │  ┌─┴─┐
q_1: ──■────┼──┤ X ├──┼────■──┤ X ├──┼────■──┤ X ├
     ┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘┌─┴─┐┌─┴─┐└─┬─┘
q_2: ┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──┤ X ├┤ X ├──■──
     └───┘└───┘     └───┘└───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

Clifford template circuits

Template circuits over Clifford gates.

clifford_2_1

qiskit.circuit.library.clifford_2_1()

GitHub

Clifford template 2_1:

q_0: ─■──■─
      │  │
q_1: ─■──■─

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_2_2

qiskit.circuit.library.clifford_2_2()

GitHub

Clifford template 2_2:

q_0: ──■────■──
     ┌─┴─┐┌─┴─┐
q_1: ┤ X ├┤ X ├
     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_2_3

qiskit.circuit.library.clifford_2_3()

GitHub

Clifford template 2_3:

     ┌───┐┌───┐
q_0: ┤ H ├┤ H ├
     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_2_4

qiskit.circuit.library.clifford_2_4()

GitHub

Clifford template 2_4:

q_0: ─X──X─
      │  │
q_1: ─X──X─

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_3_1

qiskit.circuit.library.clifford_3_1()

GitHub

Clifford template 3_1:

     ┌───┐┌───┐┌───┐
q_0: ┤ S ├┤ S ├┤ Z ├
     └───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_4_1

qiskit.circuit.library.clifford_4_1()

GitHub

Clifford template 4_1:

          ┌───┐
q_0: ──■──┤ X ├──■───X─
     ┌─┴─┐└─┬─┘┌─┴─┐ │
q_1: ┤ X ├──■──┤ X ├─X─
     └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_4_2

qiskit.circuit.library.clifford_4_2()

GitHub

Clifford template 4_2:

q_0: ───────■────────■─
     ┌───┐┌─┴─┐┌───┐ │
q_1: ┤ H ├┤ X ├┤ H ├─■─
     └───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_4_3

qiskit.circuit.library.clifford_4_3()

GitHub

Clifford template 4_3:

     ┌───┐     ┌─────┐
q_0: ┤ S ├──■──┤ SDG ├──■──
     └───┘┌─┴─┐└─────┘┌─┴─┐
q_1: ─────┤ X ├───────┤ X ├
          └───┘       └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_4_4

qiskit.circuit.library.clifford_4_4()

GitHub

Clifford template 4_4:

     ┌───┐   ┌─────┐
q_0: ┤ S ├─■─┤ SDG ├─■─
     └───┘ │ └─────┘ │
q_1: ──────■─────────■─

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_5_1

qiskit.circuit.library.clifford_5_1()

GitHub

Clifford template 5_1:

q_0: ──■─────────■─────────■──
     ┌─┴─┐     ┌─┴─┐       │
q_1: ┤ X ├──■──┤ X ├──■────┼──
     └───┘┌─┴─┐└───┘┌─┴─┐┌─┴─┐
q_2: ─────┤ X ├─────┤ X ├┤ X ├
          └───┘     └───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_6_1

qiskit.circuit.library.clifford_6_1()

GitHub

Clifford template 6_1:

     ┌───┐     ┌───┐┌───┐
q_0: ┤ H ├──■──┤ H ├┤ X ├
     ├───┤┌─┴─┐├───┤└─┬─┘
q_1: ┤ H ├┤ X ├┤ H ├──■──
     └───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_6_2

qiskit.circuit.library.clifford_6_2()

GitHub

Clifford template 6_2:

     ┌───┐
q_0: ┤ S ├──■───────────■───■─
     ├───┤┌─┴─┐┌─────┐┌─┴─┐ │
q_1: ┤ S ├┤ X ├┤ SDG ├┤ X ├─■─
     └───┘└───┘└─────┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_6_3

qiskit.circuit.library.clifford_6_3()

GitHub

Clifford template 6_3:

           ┌───┐     ┌───┐
q_0: ─X──■─┤ H ├──■──┤ X ├─────
      │  │ └───┘┌─┴─┐└─┬─┘┌───┐
q_1: ─X──■──────┤ X ├──■──┤ H ├
                └───┘     └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_6_4

qiskit.circuit.library.clifford_6_4()

GitHub

Clifford template 6_4:

     ┌───┐┌───┐┌───┐┌───┐┌───┐┌───┐
q_0: ┤ S ├┤ H ├┤ S ├┤ H ├┤ S ├┤ H ├
     └───┘└───┘└───┘└───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_6_5

qiskit.circuit.library.clifford_6_5()

GitHub

Clifford template 6_5:

              ┌───┐
q_0: ─■───■───┤ S ├───■───────
      │ ┌─┴─┐┌┴───┴┐┌─┴─┐┌───┐
q_1: ─■─┤ X ├┤ SDG ├┤ X ├┤ S ├
        └───┘└─────┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_8_1

qiskit.circuit.library.clifford_8_1()

GitHub

Clifford template 8_1:

               ┌───┐ ┌───┐ ┌───┐┌─────┐
q_0: ──■───────┤ X ├─┤ S ├─┤ X ├┤ SDG ├
     ┌─┴─┐┌───┐└─┬─┘┌┴───┴┐└─┬─┘└┬───┬┘
q_1: ┤ X ├┤ H ├──■──┤ SDG ├──■───┤ H ├─
     └───┘└───┘     └─────┘      └───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_8_2

qiskit.circuit.library.clifford_8_2()

GitHub

Clifford template 8_2:

                     ┌───┐
q_0: ──■─────────■───┤ S ├───■────────────
     ┌─┴─┐┌───┐┌─┴─┐┌┴───┴┐┌─┴─┐┌───┐┌───┐
q_1: ┤ X ├┤ H ├┤ X ├┤ SDG ├┤ X ├┤ S ├┤ H ├
     └───┘└───┘└───┘└─────┘└───┘└───┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

clifford_8_3

qiskit.circuit.library.clifford_8_3()

GitHub

Clifford template 8_3:

q_0: ─────────────────■───────────────────────■──
     ┌───┐┌───┐┌───┐┌─┴─┐┌─────┐┌───┐┌─────┐┌─┴─┐
q_1: ┤ S ├┤ H ├┤ S ├┤ X ├┤ SDG ├┤ H ├┤ SDG ├┤ X ├
     └───┘└───┘└───┘└───┘└─────┘└───┘└─────┘└───┘

Returns

template as a quantum circuit.

Return type

QuantumCircuit

RZXGate template circuits

Template circuits with RZXGate.

rzx_yz

qiskit.circuit.library.rzx_yz(theta=None)

GitHub

RZX-based template for CX - RYGate - CX.

          ┌────────┐     ┌─────────┐┌─────────┐┌──────────┐
q_0: ──■──┤ RY(-ϴ) ├──■──┤ RX(π/2) ├┤0        ├┤ RX(-π/2) ├
     ┌─┴─┐└────────┘┌─┴─┐└─────────┘│  RZX(ϴ) │└──────────┘
q_1: ┤ X ├──────────┤ X ├───────────┤1        ├────────────
     └───┘          └───┘           └─────────┘

Parameters

theta (ParameterValueType | None) –

rzx_xz

qiskit.circuit.library.rzx_xz(theta=None)

GitHub

RZX-based template for CX - RXGate - CX.

     ┌───┐         ┌───┐┌─────────┐┌─────────┐┌─────────┐┌──────────┐»
q_0: ┤ X ├─────────┤ X ├┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├┤0         ├»
     └─┬─┘┌───────┐└─┬─┘└─────────┘└─────────┘└─────────┘│  RZX(-ϴ) │»
q_1: ──■──┤ RX(ϴ) ├──■───────────────────────────────────┤1         ├»
          └───────┘                                      └──────────┘»
«     ┌─────────┐┌─────────┐┌─────────┐
«q_0: ┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├
«     └─────────┘└─────────┘└─────────┘
«q_1: ─────────────────────────────────
«

Parameters

theta (ParameterValueType | None) –

rzx_cy

qiskit.circuit.library.rzx_cy(theta=None)

GitHub

RZX-based template for CX - RYGate - CX.

                                                       ┌──────────┐
q_0: ──■─────────────■─────────────────────────────────┤0         ├───────────
     ┌─┴─┐┌───────┐┌─┴─┐┌────────┐┌──────────┐┌───────┐│  RZX(-ϴ) │┌─────────┐
q_1: ┤ X ├┤ RY(ϴ) ├┤ X ├┤ RY(-ϴ) ├┤ RZ(-π/2) ├┤ RX(ϴ) ├┤1         ├┤ RZ(π/2) ├
     └───┘└───────┘└───┘└────────┘└──────────┘└───────┘└──────────┘└─────────┘

Parameters

theta (ParameterValueType | None) –

rzx_zz1

qiskit.circuit.library.rzx_zz1(theta=None)

GitHub

RZX-based template for CX - RZGate - CX.

                                                                            »
q_0: ──■────────────────────────────────────────────■───────────────────────»
     ┌─┴─┐┌───────┐┌────┐┌───────┐┌────┐┌────────┐┌─┴─┐┌────────┐┌─────────┐»
q_1: ┤ X ├┤ RZ(ϴ) ├┤ √X ├┤ RZ(π) ├┤ √X ├┤ RZ(3π) ├┤ X ├┤ RZ(-ϴ) ├┤ RZ(π/2) ├»
     └───┘└───────┘└────┘└───────┘└────┘└────────┘└───┘└────────┘└─────────┘»
«                                    ┌──────────┐                      »
«q_0: ───────────────────────────────┤0         ├──────────────────────»
«     ┌─────────┐┌─────────┐┌───────┐│  RZX(-ϴ) │┌─────────┐┌─────────┐»
«q_1: ┤ RX(π/2) ├┤ RZ(π/2) ├┤ RX(ϴ) ├┤1         ├┤ RZ(π/2) ├┤ RX(π/2) ├»
«     └─────────┘└─────────┘└───────┘└──────────┘└─────────┘└─────────┘»
«
«q_0: ───────────
«     ┌─────────┐
«q_1: ┤ RZ(π/2) ├
«     └─────────┘

Parameters

theta (ParameterValueType | None) –

rzx_zz2

qiskit.circuit.library.rzx_zz2(theta=None)

GitHub

RZX-based template for CX - PhaseGate - CX.

                                                                          »
q_0: ──■────────────■─────────────────────────────────────────────────────»
     ┌─┴─┐┌──────┐┌─┴─┐┌───────┐┌─────────┐┌─────────┐┌─────────┐┌───────┐»
q_1: ┤ X ├┤ P(ϴ) ├┤ X ├┤ P(-ϴ) ├┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├┤ RX(ϴ) ├»
     └───┘└──────┘└───┘└───────┘└─────────┘└─────────┘└─────────┘└───────┘»
«     ┌──────────┐
«q_0: ┤0         ├─────────────────────────────────
«     │  RZX(-ϴ) │┌─────────┐┌─────────┐┌─────────┐
«q_1: ┤1         ├┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├
«     └──────────┘└─────────┘└─────────┘└─────────┘

Parameters

theta (ParameterValueType | None) –

rzx_zz3

qiskit.circuit.library.rzx_zz3(theta=None)

GitHub

RZX-based template for CX - RZGate - CX.

                                                                            »
q_0: ──■─────────────■──────────────────────────────────────────────────────»
     ┌─┴─┐┌───────┐┌─┴─┐┌────────┐┌─────────┐┌─────────┐┌─────────┐┌───────┐»
q_1: ┤ X ├┤ RZ(ϴ) ├┤ X ├┤ RZ(-ϴ) ├┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├┤ RX(ϴ) ├»
     └───┘└───────┘└───┘└────────┘└─────────┘└─────────┘└─────────┘└───────┘»
«     ┌──────────┐
«q_0: ┤0         ├─────────────────────────────────
«     │  RZX(-ϴ) │┌─────────┐┌─────────┐┌─────────┐
«q_1: ┤1         ├┤ RZ(π/2) ├┤ RX(π/2) ├┤ RZ(π/2) ├
«     └──────────┘└─────────┘└─────────┘└─────────┘

Parameters

theta (ParameterValueType | None) –

Was this page helpful?
Report a bug or request content on GitHub.
