qiskit.pulse.library.triangle

triangle(duration, amp, freq=None, phase=0, name=None)

Generates triangle wave Waveform.

For $A=$ amp, $T=$ period, and $\phi=$ phase, applies the midpoint sampling strategy to generate a discrete pulse sampled from the continuous function:

This a non-sinusoidal wave with linear ramping.

Parameters

• duration (int) – Duration of pulse. Must be greater than zero.
• amp (complex) – Pulse amplitude. Wave range is $[-$ amp $,$ amp $]$.
• freq (Optional[float]) – Pulse frequency, units of 1./dt. If None defaults to 1./duration.
• phase (float) – Pulse phase.
• name (Optional[str]) – Name of pulse.

Example

import matplotlib.pyplot as plt
from qiskit.pulse.library import triangle
import numpy as np

duration = 100
amp = 1
freq = 1 / duration
triangle_wave = np.real(triangle(duration, amp, freq).samples)

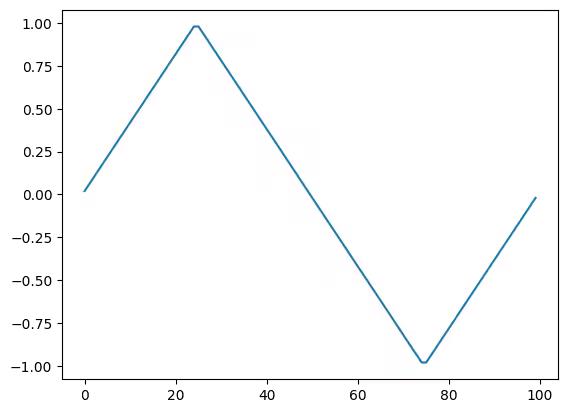

plt.plot(range(duration), triangle_wave)

[<matplotlib.lines.Line2D at 0x7f2198a249d0>]

Return type

Waveform
