qiskit.visualization.plot_bloch_vector

plot_bloch_vector(bloch, title='', ax=None, figsize=None, coord_type='cartesian')

Plot the Bloch sphere.

Plot a sphere, axes, the Bloch vector, and its projections onto each axis.

Parameters

• bloch (list[double]) – array of three elements where [<x>, <y>, <z>] (Cartesian) or [<r>, <theta>, <phi>] (spherical in radians) <theta> is inclination angle from +z direction <phi> is azimuth from +x direction
• title (str) – a string that represents the plot title
• ax (matplotlib.axes.Axes) – An Axes to use for rendering the bloch sphere
• figsize (tuple) – Figure size in inches. Has no effect is passing ax.
• coord_type (str) – a string that specifies coordinate type for bloch (Cartesian or spherical), default is Cartesian

Returns

A matplotlib figure instance if ax = None.

Return type

Figure

Raises

MissingOptionalLibraryError – Requires matplotlib.

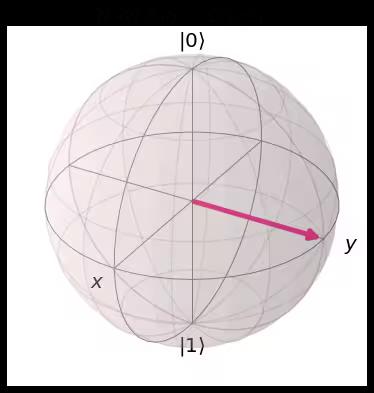

Example

from qiskit.visualization import plot_bloch_vector
%matplotlib inline

plot_bloch_vector([0,1,0], title="New Bloch Sphere")
