qiskit.circuit.random.random_circuit

random_circuit(num_qubits, depth, max_operands=3, measure=False, conditional=False, reset=False, seed=None)

Generate random circuit of arbitrary size and form.

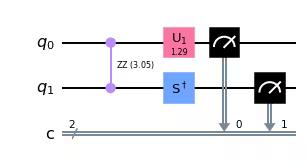

This function will generate a random circuit by randomly selecting gates from the set of standard gates in qiskit.extensions. For example:

from qiskit.circuit.random import random_circuit

circ = random_circuit(2, 2, measure=True)
circ.draw(output='mpl')

Parameters

• num_qubits (int) – number of quantum wires
• depth (int) – layers of operations (i.e. critical path length)
• max_operands (int) – maximum operands of each gate (between 1 and 3)
• measure (bool) – if True, measure all qubits at the end
• conditional (bool) – if True, insert middle measurements and conditionals
• reset (bool) – if True, insert middle resets
• seed (int) – sets random seed (optional)

Returns

constructed circuit

Return type

QuantumCircuit

Raises

CircuitError – when invalid options given
