View analytics
From the hub menu, select the analytics tab to view data about how IBM Quantum systems are being used in your environment.
Filters
When you first click the analytics tab, the data is filtered to display the previous 28 days (the fair-share algorithm accounts for usage over a rolling time window of 28 days; read more in the fair-share queue topic) and excludes simulators. You will see the applied filters as tags at the top:

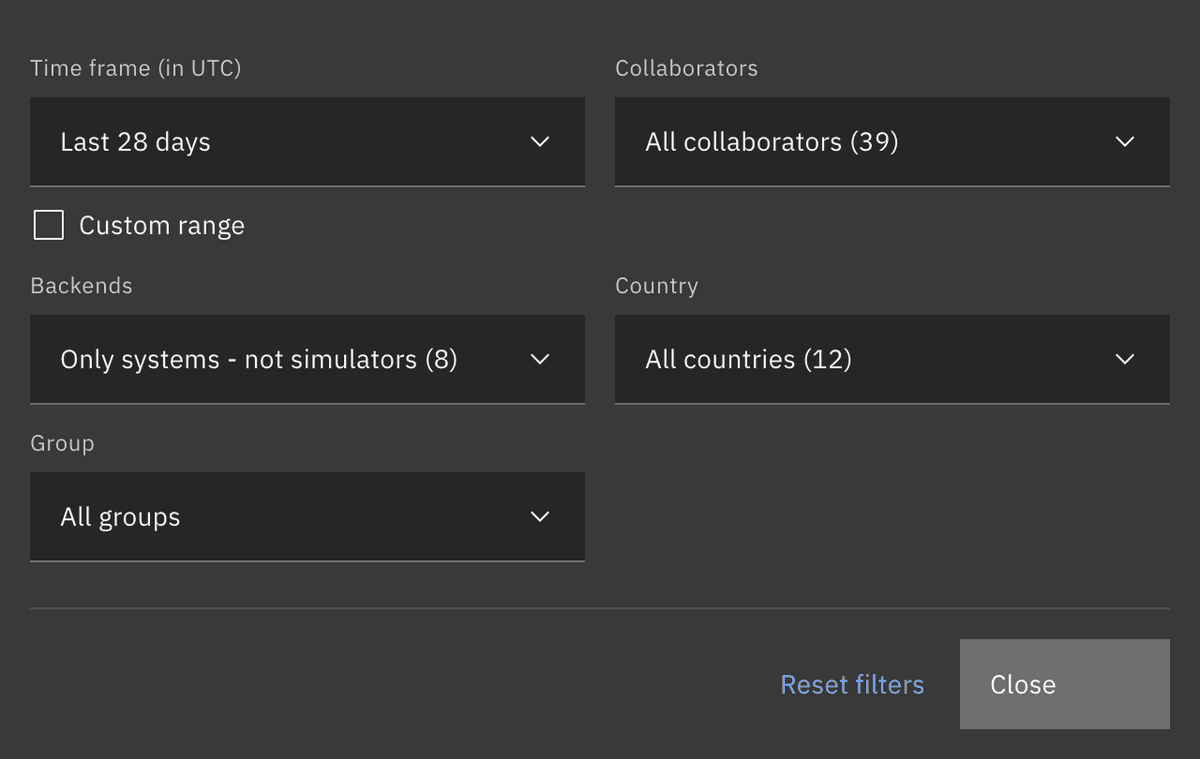

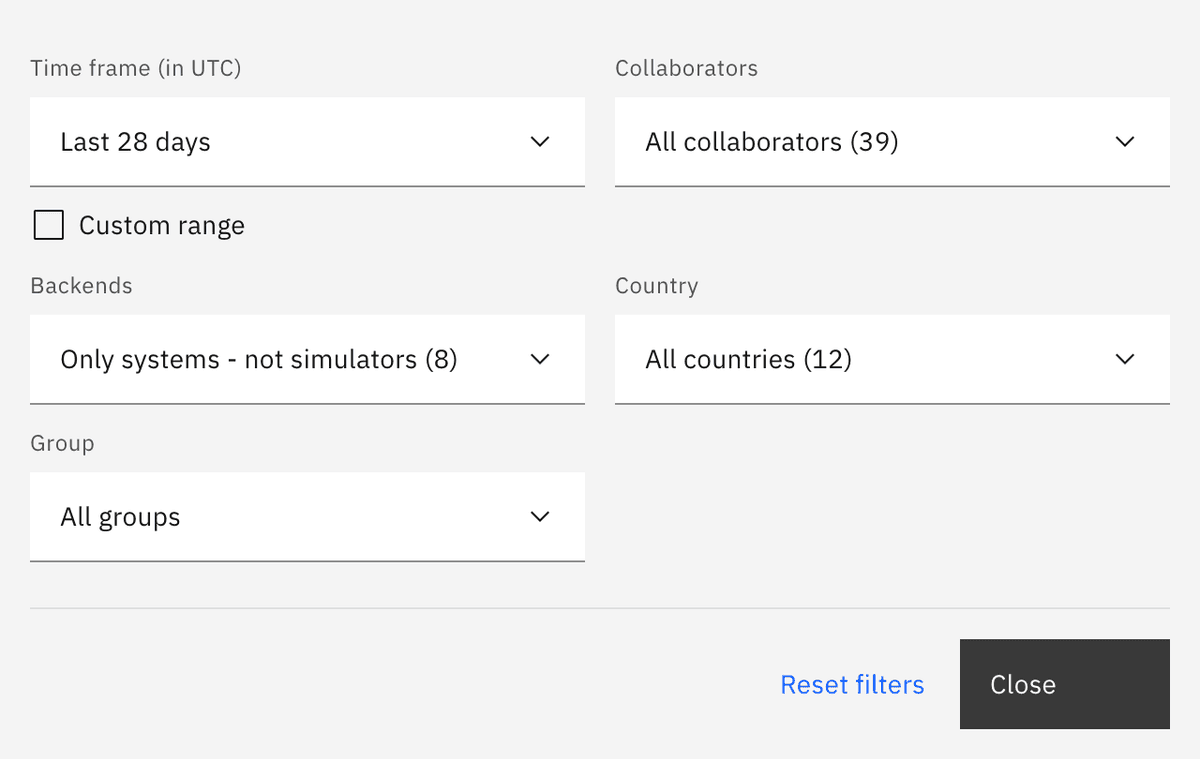

You can choose other filters by clicking on the funnel icon, which displays the filters menu:
A hub administrator can filter by any of the groups in their hub. A group administrator only sees the groups in which they have administrative privileges.
Summary
The summary section displays high-level aggregated statistics for the filters you selected: the total usage, the number of completed jobs, and the average wait time in the queue.
You can also download all data as CSV files by clicking "Download data".
Hub usage
This bar graph shows how much each group (or project if filtering by a group) has used the hub resources (systems only), based on the total consumption of Qiskit Runtime quantum compute time by jobs that have been completed.
You can choose whether to display the data cumulatively (seeing the total sum of data) or non-cumulatively (seeing the data of each individual day) by clicking the switcher at the top right of the chart.
Depending on the filters you selected, the non-cumulative data might not be available.
Cumulative
Hover your cursor over a bar in the graph to see the exact usage in minutes per group (or project if filtering by a group).
Non-cumulative
Hover your cursor over a bar in the graph to see the exact usage in minutes per group (or project if filtering by a group).
Share distribution and consumption
This bar graph shows the percentage of the hub share used by each group (or project if filtering by a group) compared to the configured share amount.
Hover your cursor over a bar in the graph to see the exact total usage and configured share percentages that the bar represents.
Usage by backend
This bar graph displays the Qiskit Runtime usage (in minutes) each backend has used during the selected time frame.
Hover your cursor over a bar in the graph to see the exact number of minutes that the bar represents.
Jobs by collaborators
This table lists collaborators who have used the system in the selected time frame.
Select the checkbox to the left of the collaborator's name to filter the rest of the data by this collaborator.
Click "Show X active collaborators" to display the complete list.
Jobs by country
This table lists the countries where job submissions are originating, and the job count from each country.
Select the checkbox to the left of the country's name to filter the rest of the data by this country.
Click "Show X countries" to display the complete list.
